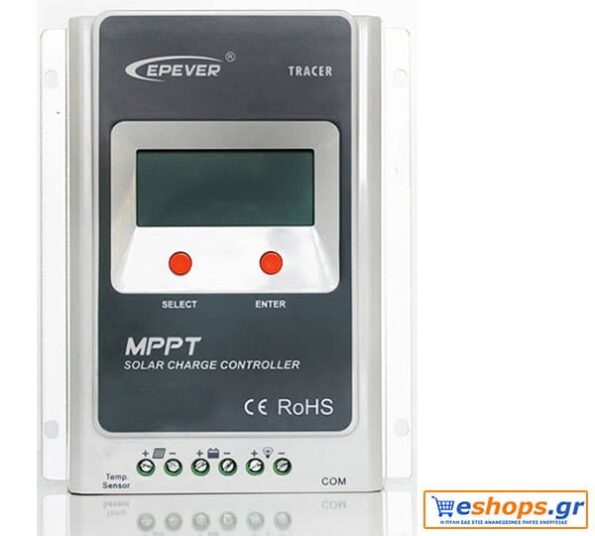

Mppt 4210A 40A Display ρυθμιστής φόρτισης

20A συνεχούς λειτουργίας και  max 25A  ρυθμιστής φόρτισης  προγραμματιζόμενος για χρήση ακόμη και σε κολώνες φωτισμού, φώτα κήπου με δυνατότητα νυκτερινής λειτουργίας.

Τεχνική ανάλυση

Solar charge controller for street light
Dual timer function
Battery type selection
Full electronic protection
Solar charge controller

Features
1. Intelligent system optimum controller
2. High efficient series PWM charging with temperature compensation
3. Compact size
4. Use mosfet as electronic switch, without any mechanical switch
5. Digital LED menu, only one key solve all setting simple
6. Widely used, automatically recognize day/night
7. Intelligent timer function with 1-15 hours option
8. Unique dual timer function, enhance the flexibility of street light system.
9. Gel, sealed and flooded battery type option
10. Load status display
11. Big terminals and big distance between terminals
12. Electronic protection: Overheating, over charging, over discharging, overload, and short circuit
13. Reverse polarity protection: Any combination of solar module and battery
14. Load work mode: Light on+dual timer, dusk to dawn, test, on/off
Model LS2024R
Rated Current 20A
System Voltage 12/24V auto work
Over Load Protection 1.25 times of rated current for 60 seconds, or 1.5 times for 5 seconds
Short Circuit Protection 3.5 times of rated current
Self- consumption Max. 6mA
Working Temperature -35’C to +55’Cindustrial
Equalize Charging Voltage 14.6V; X2/24V
Boost Charging Voltage 14.4V; X2/24V
Float Charging Voltage 13.8V; X2/24V
Boost Reconnect Charging Voltage 13.2V; X2/24V
Temperature Compensation -30mV/’C/12V
Under Voltage Warning Voltage 12.0V; X2/24V
Low Voltage Disconnect Voltage 11.1V; X2/24V
Low Voltage Reconnect Voltage 12.6V; X2/24V
Terminals 10mm2
Enclosure IP30
