MultiGrid 48/3000/35-50

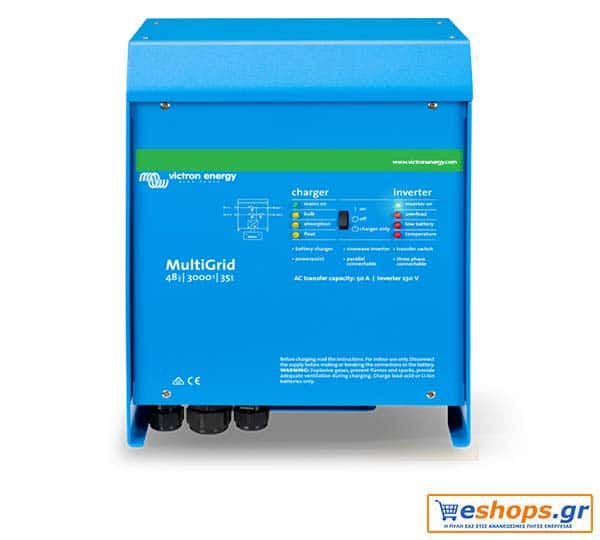

MultiGrid 48/3000/35-50 The Victron Energy MultiGrid is a special version of the MultiPlus Inverter / Charger. It has been specially designed for on-grid battery storage systems. In order to comply with VDE-AR-N 4105, various adaptations have been made to the hardware and firmware.

Based on this standard, the Multigrid has been approved by Synergrid (list C10 / 26) for use in systems connected to the network, without an additional ENS (network switch).

The installation is thus simplified (fewer components) and therefore costs less.

” Multifunction inverter with an intelligent energy management ”

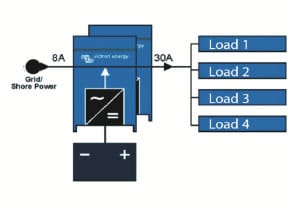

PowerControl – Dealing with limited generator, shore side or grid power

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10A per 5kVA Multi at 230VAC). MultiGrid 48/3000/35-50  With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist – Boosting the capacity of shore or generator power

This feature takes the principle of PowerControl to a further dimension. MultiGrid 48/3000/35-50 It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
